WID Laser C500
WID Laser C500

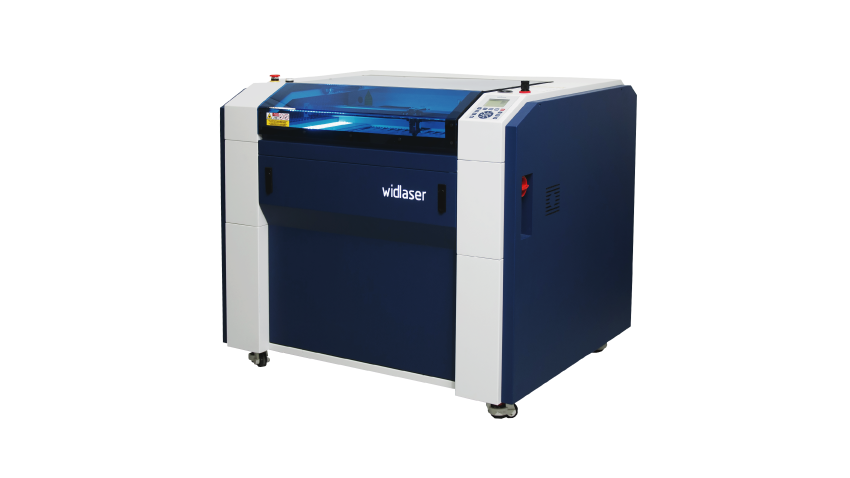

The widlaser C500 is designed to effectively respond to the needs of the laser engraving and cutting market. We have developed a compact, fast, robust, reliable and technologically advanced equipment. The compact dual-chassis design, allows you, to have all the necessary elements to properly function with the equipment in a single volume.
Its CleanProtect design, with special dust-proof and smoke-proof linear modules allows speeds and accelerations up to 3 times higher than conventional equipment. This way, we ensure that the C500 widlaser is always operational.
Best lasers in the market
We have a full range of lasers available through partnerships with the best brands in the market.
Easy to use software
User-friendly software with powerful tools, suitable for beginners or professionals.
Endless applications
Cut and engrave several materials with one single process. Autofocus to facilitate use.
First class materials
Thanks to the smart and robust design of the laser machines, we ensure their reliability, precision and robustness.
Specification
Laser Type: 30w RF or 60w Co2 Laser tube
Minimum font size (mm):1 x 1
Max Working width x length (mm):700 x 500
Max Object thickness (mm):150mm
Engraving speed (mm/s):0-500
Cutting speed (mm/s):0-400
Reposition accuracy (mm):-/+ 0.01
XY guide system:Linear bearing & guide rails
Power consumption:<1500w data-preserve-html-node="true"
Control Software Control:✓
Supported file Formats:AI, DST, PLT, BMP, DXF
Laser water cooler Unit:✓
Distance auto focus head:✓
Extractor / exhaust:✓
Air assisted head:✓
Red laser pointer / guide:✓
Height adjustable bed:✓
Honey comb bed:✓
Removable blade bed:✓
Waste / part collection draw:✓
4 wheel Rotary attachment:Optional
laser power option (w):60w
Connectivity:USB and Network
Machine dimensions (mm):W 1220 x D 960 x H 1240
Packing case dimensions (mm):W 1420 x D 1160 x H 1390
Packaged weight:290kg
Voltage:220v 10A 50-60hz
Delivery, installation and training:✓*Manufactures warranty 1 year
